Rhythm diagnosis in regular wide complex tachycardia
Assume ventricular tachycardia until proven otherwise
Background
- Some patients with regular wide complex tachycardia do not have ventricular tachycardia
- However, ventricular tachycardia is a dangerous rhythm that must be treated emergently
Differential Diagnosis
Wide-complex tachycardia
Assume any wide-complex tachycardia is ventricular tachycardia until proven otherwise (it is safer to incorrectly assume a ventricular dysrhythmia than supraventricular tachycardia with abberancy)
- Regular
- Monomorphic ventricular tachycardia
- PSVT with aberrant conduction:
- PSVT with bundle branch block^
- PSVT with accessory pathway
- Atrial flutter with bundle branch block^
- Sinus tachycardia with bundle branch block^
- Accelerated idioventricular rhythm (consider if less than or ~120 bpm)
- Metabolic
- Irregular
- Atrial fibrillation/atrial flutter with variable AV conduction AND bundle branch block^
- Atrial fibrillation/atrial flutter with variable AV conduction AND accessory pathway (e.g. WPW)
- Atrial fibrillation + hyperkalemia
- Polymorphic ventricular tachycardia
^Fixed or rate-related
Evaluation
Factor |
V-Tach | SVT with Aberrancy |
Age | >50 | <35 |
History | MI, CHF, CABG, MVR | MVR, WPW |
Cannon A Waves | Present | Absent |
Arterial Pulse | Variation | No variation |
First heart sound | Variable | Not variable |
Fusion Beats | Present | Absent |
AV dissociation | Present | Absent |
QRS | >0.14sec | <0.14sec |
Axis | Extreme LAD (< -30) | Normal or slightly abnormal |
Vagal Maneuvers | No response | Slows or terminates |
QRS morphology (RBBB-like pattern) |
V1 - R or qR V6 - rS |
V1 - rsR' V6 - R(slurredS) |
QRS morphology (LBBB-like pattern) |
V1 or V2 - Broad R wave (>40msec) V6 - Any Q or QS |
V1 - rS or QS V6 - qRs |
Diagnostic Algorithms
Assume ventricular tachycardia until proven otherwise
- Only for regular rhythms, if irregular consider a-fib with block
- Only for treatment decision if patient is stable
Brugada Algorithm
- Absence of an RS complex in all precordial leads?
- If yes then VT
- If no then continue
- RS interval >100ms in any precordial lead? (onset of R wave to deepest part of S wave)
- If yes then VT
- If no then continue
- AV dissociation?
- If yes then VT
- If no then continue
- Morphology criteria for v-tach present in both V1-2 and V6?
- If yes then VT
- If no then possibly SVT with aberrant conduction
aVR Algorithm
- In lead aVR:
- Presence of an initial R wave?
- If yes then VT
- If no then continue
- Presence of an initial r or q wave >40ms
- If yes then VT
- If no then continue
- Presence of a notch on descending limb of a negative onset, predominantly negative QRS?
- If yes then VT
- If no then continue
- Ventricular activation-velocity ratio (Vi/Vt) ≤1?
- If yes then VT
- If no then SVT

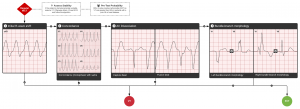

Niemann Algorithm[1]
- Combination of the most specific aspects of the above two algorithms
Acronym: CARMA → Concordance → aVR →Regular → Morphology →AV dissociation
- Presence of an initial R wave in aVR? [2][3]
- If yes then VT
- If no then continue

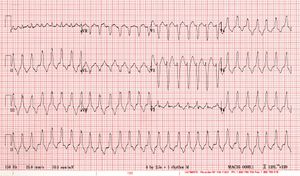

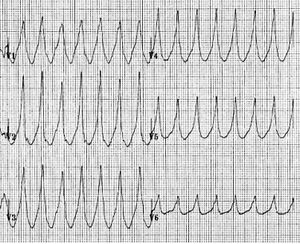

- Is there concordance (monophasic with same polarity) in all of the precordial leads? [4]
- If yes then VT
- If no then continue
- Is there evidence of AV dissociation/Capture beats?
- If yes then VT
- If no then continue
- Is the QRS morphology in V1 and V6 consistent with either LBBB or RBBB? [5][6]
- If no then VT
- If yes then SVT with aberrancy
R-Wave Peak Time Method
- In lead II, if the TIME in (ms) it takes the R wave to go from the isoelectric line to its peak voltage is greater than 50ms, it is VT
- Positive Likelihood ratio of 34.8
Lesser Known Criteria

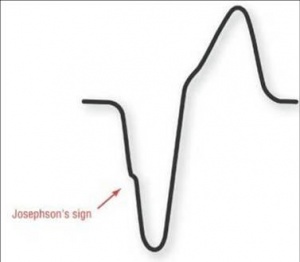

- Josephson's sign --- notching or slurring near the nadir of the S-wave is characteristic of V. Tach
- Rsr' sign --- A taller left R wave in v1-v2 is very specific for VT, as opposed in a RBBB where the second/right R-wave (R') is taller
- "Northwest" axis deviation -- Negative QRS complex in I, AVF and Positive QRS in AVR
