Aortic endograft complications
Background
- Patients with Endovascular Aortic Repair (EVAR) can have unique complications that are not discussed in most emergency medicine literature.

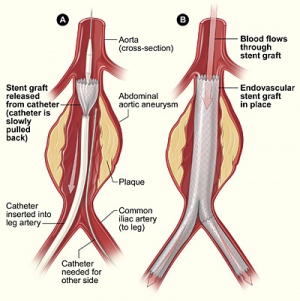

- EVAR has largely replaced open aortic repair as the gold standard for the treatment of Abdominal Aortic Aneurysm (AAA).
- Common complications including aortoenteric fistula, endoleaks, and graft thrombosis can present in a similar fashion to other common ED diagnoses.
Clinical Features
The presentation can vary based on the underlying issue with the graft. Most symptoms are non-specific and include nausea, vomiting, abdominal pain, hematochezia, and back pain.
Differential Diagnosis
EVAR Complications
- Aortoenteric Fistula (most common)- expect symptoms of GI bleeding.
- Endoleaks- Vascular flow outside of the graft that is still contained in the aortic aneurysm. This can lead to worsening AAA and ultimately rupture.
- Type 1: the seal of the graft fails
- Type 2: a collateral vessel leaks
- Type 3: graft tear or failure
- Type 4: porosity of the graft
- Type 5: endotension/unidentifiable source
- Limb ischemia- via embolism from the graft
- Graft thrombosis
- This usually occurs in the first 6 months following graft implantation
- Graft infection
- A rare complication but with a mortality approaching 40%. Symptoms are non-specific.
- Renal artery occlusion
- Colonic ischemia
- Spinal cord ischemia
Evaluation
- Physical
- There are no exam findings which reliably rule in or out these diagnoses.
- Labs
- CBC, CMP, Lipase, Type and Screen, UA, +/- Blood cultures(graft infection), +/- Lactate(suspected mesenteric ischemia)
- Imaging
- CT- for the highest sensitivity a triple phase CT scan (non-contrast, arterial phase, delayed phase) is required. Usually you want to talk with radiology prior to this study.
- Ultrasound- both point of care ultrasound and duplex ultrasound do not detect EVAR complications with high enough sensitivity to be use routinely.
Management
- Coordination of care with vascular surgery is recommended when a graft issue is suspected- consult early
- Balanced resuscitation and early antibiotics if infection is suspected.
Disposition
- Knowing the unique complications of EVAR is the first and most important step in the management of these patients.
- Unfortunately, while CT is sensitive for most complications of EVAR it does NOT definitively exclude Aortoenteric Fistula, Graft infection or endoleaks. Maintain a high index of suspicion when a EVAR issue is suspected and always lean toward conservative management/early specialist consultation.
See Also
External Links
References
- Slama R, Long B, Koyfman A,: The Emergency medicine approach to abdominal vascular graft complications. AJEM 2016; 34: pp. 2014-2017
