ECG (main)
(Redirected from ECG Basics)
This page is for adult patients. For pediatric patients, see: ECG (peds)
Measurement
All these measures are valid for the standard paper speed of 25 mm/Sec
- 1 small box = 1mm = 0.04 sec = 40 miliseconds
- 5 small boxes = 1 big box = 5mm = 0.2 sec = 200 miliseconds
- Standard 12 lead ECG duration = 10 seconds
Interval | Time(s) | Boxes |
PR | 0.12 - 0.20 | 3-5 |
QRS | 0.06 - 0.10 | 1.5-2.5 |
QTc | <0.44 | N/A |
Primary Analysis
Segments & Intervals
Waves
Hypertrophy/Enlargement
Cardiac Hypertrophy and Enlargement
- Right atrial enlargement
- Left atrial enlargement
- Left ventricular hypertrophy
- Right ventricular hypertrophy
Differential includes ischemic events, electrolyte abnormalities, and medication overdoses in addition to rheumatologic conditions[1][2]
- Anterior MI
- Rheumatic fever
- Myocarditis
- Lyme disease
- Lenegre's disease
- Lev's disease
- SLE
- Systemic sclerosis
- Amyloidosis
- Hemochromatosis
- Sarcoidosis
- Hyperkalemia
- Toxicology
AV blocks
- First degree AV block

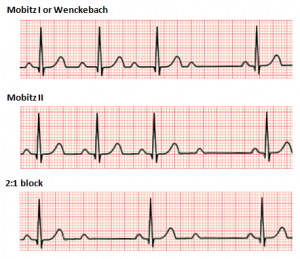

- Second degree
- Third degree AV block
- AV dissociation without complete heart block

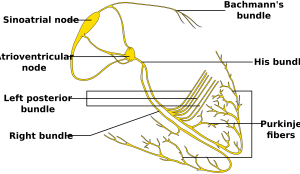

Bundle and Fascicular Blocks
- Right Bundle Branch Block
- Left Bundle Branch Block
- Left Anterior Fascicular Block
- Left Posterior Fascicular Block
- Trifascicular Block
Premature Beats
